Twotrees TTC-450 PRO CNC-Fräsmaschine
Normaler Preis
$ 549.00
Normaler Preis
$ 797.00
Verkaufspreis
$ 549.00
Grundpreis
pro
Versand wird beim Checkout berechnet
Pay with
and enjoy 4 interest-free installments.
Verfügbarkeit für Abholungen konnte nicht geladen werden
Verfügbarkeit:
48 auf Lager
Normaler Preis
$ 549.00
Normaler Preis
$ 797.00
Verkaufspreis
$ 549.00
TC450 Pro Highlights
Precision, Power, and Durability

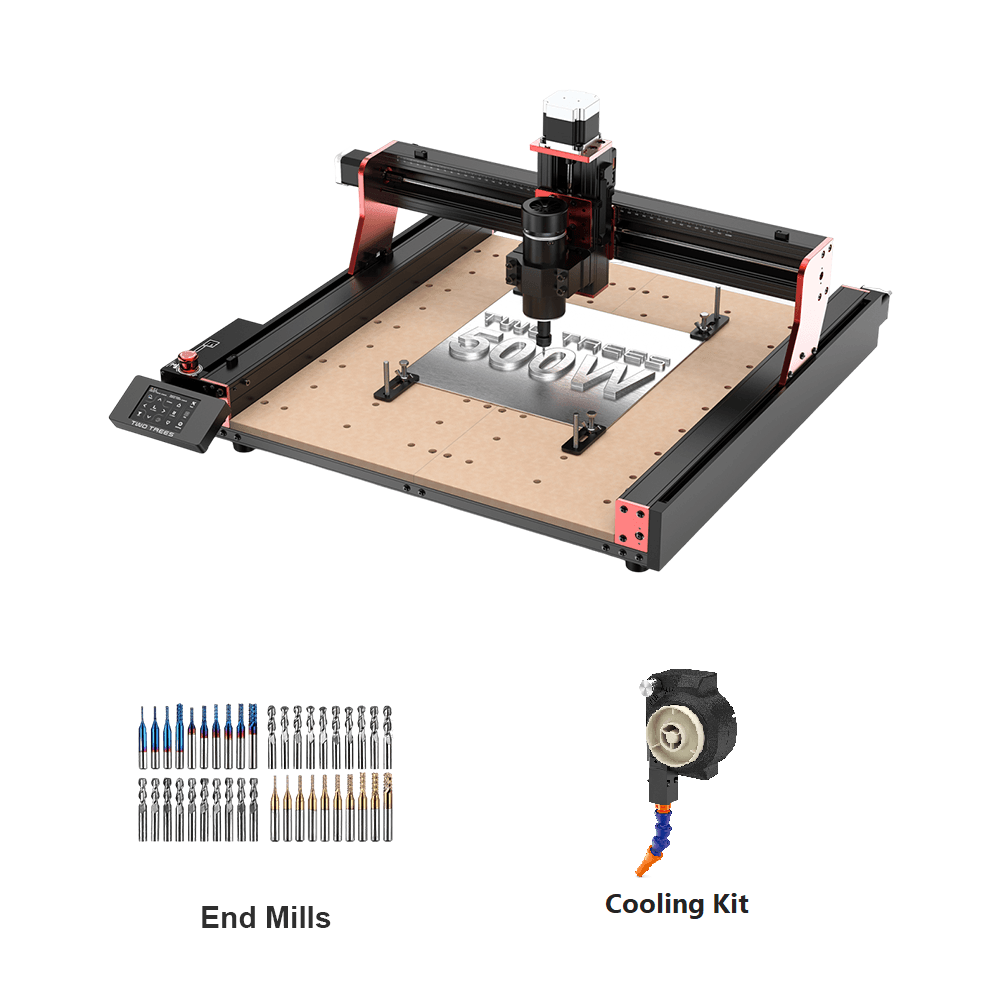

Explore Accessories for the TTC450 Pro
Enhance Performance and Versatility
Technical specifications
| Parameters | Specifications and Features |
|---|---|
| Name | CNC Woodworking Engraving Machine |
| Model | TTC450 Pro |
| color | Red and Black |
| Frame structure | Sheet Metal + Aluminum Profile + Injection Molding + Stainless Steel |
| Product size | 742mmX689mm X 413mm |
| Working range | 460mmX460mmX80mm(18.1in*18.1in*3.14in) |
| Supported tool diameter | 0.5mm to 7mm(ER11 chuck) |
| Compatible engraving materials | Plywood/MDF/Solid Wood/Acrylic/Carbon Brazing/Aluminum/Copper/Stainless Steel |
| Net weight | 15.45KG |
| Gross weight | 20.6KG |
| Packing size | 760X740x218mm |
| Power supply mode | 24V3A Power Adapter |
| Switch power supply parameters | INPUT:100AC-240AC 50GHZ OUTPUT:DC24V/3A |
| Touch screen | 3.5-inch IPS capacitive touch color screen (480*320 resolution) |
| Firmware type | GRBL open source, supports both CNC and laser (no firmware required) |
| Support | TF storage card | USB port | Wifi-2.4G Hz |
| Not supported | Wifi-5G Hz | Bluetooth | Ethernet | USB flash drive |
| Engraving accuracy | 100±0.05mm |
| Maximum engraving speed | 800mm/min |
| Maximum acceleration | 1000mm/s² |
| Spindle motor | 775 brushed motor (standard) |
| Spindle speed | Depending on the installation, the spindle speed range is 8000-30000RPM |
| Tool size | According to ER11 collet inner hole size supports 0.5-6MM diameter tool |
| Engraving layer height | Non-metal 0.1mm-20mm Metal 0.1mm-0.2mm |
| Programming software | Artcam, Fusion360, EASEL, Carveco Maker, etc. |
| Support system | MacOS\Windows\Linux |
| Software language | Chinese\English\Spanish\German\French\Russian\Portuguese\Italian\Japanese\Korean\Turkish |
| Program support format | .nci\Gcode |
| Safety certification | CE-EMC/CE-LVD/CE-MD/CE-RED/ROHS/FCC-Sdoc/FCC-ID |
| Optimal engraving environment temperature | 0°-40° |
